Pixel Pitch for LED Screens in the UAE: Choosing the Right Density for Dubai’s Viewing Distances

Pixel pitch is the sin­gle spec­i­fi­ca­tion that decides whether a LED screen reads as a crisp image or a grid of dots — and the right val­ue in the UAE is almost nev­er the same as the one a Paris or London inte­gra­tor would default to. UAE projects mix unusu­al view­ing dis­tances, very high ambi­ent bright­ness, on-cam­era installs (F1 Abu Dhabi, GITEX, Dubai Shopping Festival) and archi­tec­tur­al envelopes that com­press or stretch typ­i­cal pitch log­ic. This guide is how we spec­i­fy pix­el pitch on FlexLedLight projects across Dubai, Abu Dhabi, Sharjah and the Northern Emirates.

If you are sourc­ing a LED screen for a Sheikh Zayed Road bill­board, a Dubai Mall retail wall, a DIFC trad­ing-floor back­drop or a Yas Marina event stage, the rule of thumb that worked in Europe will over­spend, under­per­form or both.

What Pixel Pitch Means for UAE LED Screens

Pixel pitch is the dis­tance in mil­lime­tres between the cen­tres of two adja­cent LEDs on a screen. A P4 screen has 4 mm between LEDs, a P2.5 has 2.5 mm, and so on. The small­er the pitch, the high­er the pix­el den­si­ty, the clos­er a view­er can stand with­out see­ing the indi­vid­ual diodes — and the high­er the price per square metre.

The Basic Definition and How It Is Measured

The num­ber that mat­ters is the cen­tre-to-cen­tre dis­tance in mil­lime­tres, mea­sured both hor­i­zon­tal­ly and ver­ti­cal­ly. On almost every pro­fes­sion­al LED screen sold in the UAE the pitch is iden­ti­cal on both axes (a true square pix­el grid), but lega­cy strip prod­ucts and some trans­par­ent solu­tions use asym­met­ric pitch­es like 3.91 × 7.81 mm, which look fine head-on and degrade fast off-axis.

To trans­late pitch into res­o­lu­tion, divide the screen dimen­sion by the pitch. A 10 m wide P4 screen car­ries 2,500 hor­i­zon­tal pix­els; the same width in P2.5 car­ries 4,000 pix­els. That dif­fer­ence mat­ters because UAE clients increas­ing­ly demand 4K-capa­ble façades for broad­cast use — and a 4K image (3,840 × 2,160) needs a 15 m wide P4 screen, or a 9.6 m wide P2.5.

Pixel Density and Why It Drives Cost

LED count per square metre scales with the inverse square of pitch. A P4 screen has 62,500 pixels/m². A P2.5 has 160,000. A P1.5 has 444,444. Cost per square metre, dri­ver elec­tron­ics, pow­er draw and weight all scale rough­ly with pix­el den­si­ty, which is why drop­ping pitch from P4 to P2.5 typ­i­cal­ly adds 80–120% to the screen bud­get — and why over-spec­i­fy­ing pitch is the most com­mon waste in UAE LED procurement.

The oth­er rea­son den­si­ty mat­ters in the Emirates: heat dis­si­pa­tion. Each dri­ver IC pro­duces heat. Cramming 444,444 of them per square metre in a P1.5 cab­i­net, then run­ning it at 7,500 nits in a 50 °C Dubai August, requires far more active cool­ing than a P4 in the same con­di­tions. We rou­tine­ly down-pitch by half a step on UAE out­door projects to cut both cost and ther­mal load.

Pixel Pitch and Viewing Distance in UAE Environments

Every UAE project we scope starts with a view­ing-dis­tance audit. The clas­sic European rule — “min­i­mum view­ing dis­tance in metres equals pitch in mil­lime­tres” — is too aggres­sive for out­door UAE con­di­tions, where bright sun and atmos­pher­ic haze flat­ten con­trast. Our work­ing rule:

• Outdoor under direct sun (Dubai, Abu Dhabi, Al Ain): min­i­mum com­fort­able view­ing dis­tance ≈ 1.2 × pitch in mm, expressed in metres. A P6 out­door screen reads clean­ly from 7 m, not 6 m.
• Indoor mall or atri­um (Dubai Mall, Mall of the Emirates, Yas Mall): min­i­mum com­fort­able dis­tance ≈ 0.8 × pitch in mm. A P2.5 indoor screen reads clean­ly from 2 m.
• Broadcast / on-cam­era (GITEX booths, F1 back­drops, stu­dio walls): apply the indoor rule then move one pitch step fin­er — because cam­era sen­sors resolve detail the human eye miss­es at the same distance.

How Pitch Translates to Resolution in Real UAE Installs

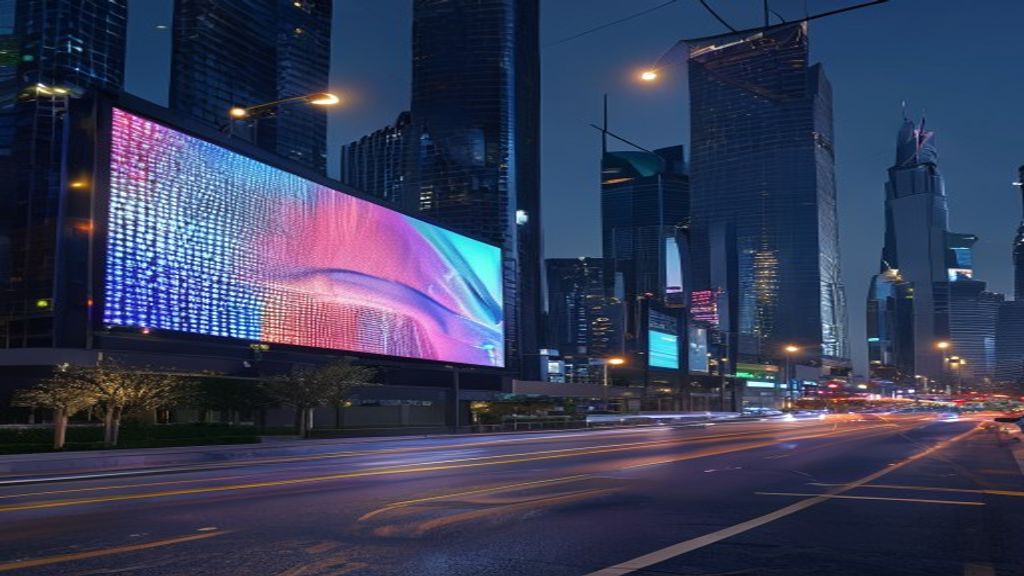

For a 7 m × 4 m out­door video wall on Sheikh Zayed Road viewed from cars 15–25 m away, P8 or P10 is right. A P4 install would deliv­er the same read­able con­tent for two to three times the bud­get. We see this mis­take repeat­ed­ly with European spec­i­fiers land­ing in the UAE.

For a 5 m × 3 m retail screen inside Dubai Mall, viewed by pedes­tri­ans at 2–4 m, P2.5 is the sweet spot. P1.5 buys noth­ing the eye can resolve through mall light­ing and ambi­ent activ­i­ty; P3.91 starts to feel dot­ty for sta­t­ic prod­uct imagery and brand logos.

For a 12 m × 6 m cor­po­rate lob­by wall in DIFC or ADGM Square, viewed from 6–10 m, P3 or P3.91 is the right pitch. P2.5 is overkill; P4 begins to crawl in the corners.

What Pitch to Expect for Common UAE Applications

• Drive-by bill­board along E11, E311, E44 or Yas Island cir­cuits: P8 to P16 out­door, depend­ing on lane distance.
• Pedestrian-fac­ing store­front in Dubai Mall, MoE, City Walk, BurJuman or Yas Mall: P2.5 to P3 indoor.
• Transparent LED façade in DIFC, ADGM Square or Burj Plaza: P3.91 to P7.81 transparent.
• Trading-floor video wall, ADIA / DIFC bank lob­by: P1.5 to P2.5 indoor fine pitch.
• Stadium and con­cert rib­bon at Etihad Park, Yas Marina, Coca-Cola Arena: P6 to P10 outdoor.
• F1 Abu Dhabi, GITEX, ADIPEC, Dubai Airshow on-cam­era back­drop: P1.9 to P2.6 with 3,840 Hz refresh minimum.

Choosing the Right UAE Pixel Pitch in Five Steps

A repeat­able spec­i­fi­ca­tion method pro­tects bud­get and ensures the screen does what the brief requires. We use the same check­list on every UAE bid.

Step 1: Measure or Model the Real Viewing Distance

Walk the site. Stand where the actu­al audi­ence will stand. For dri­ve-by installs, dri­ve the route at the post­ed speed. For retail, time the dwell win­dow in front of the planned screen — a Dubai Mall store­front has a 4 to 8 sec­ond active dwell, an air­port cor­ri­dor at DXB has 2 to 3 sec­onds, an ADGM lob­by has 15 to 30 sec­onds. Each win­dow sug­gests dif­fer­ent pitch and con­tent density.

Step 2: Decide Whether the Screen Will Be on Camera

If yes — and in the UAE event mar­ket the answer is “yes” sur­pris­ing­ly often — you must spec­i­fy both fine pitch (P2.6 or below for stu­dio, P3.91 or below for live) and high refresh (3,840 Hz, ide­al­ly 7,680 Hz) to elim­i­nate band­ing on phones, broad­cast cam­eras and social-media ver­ti­cals shot at 60 fps.

Step 3: Apply the UAE Brightness Correction

A pitch that looks per­fect at 1,500 nits in a European demo room may strug­gle to deliv­er the same per­cep­tu­al sharp­ness at 7,500 nits in Dubai. Higher bright­ness ampli­fies any pitch-relat­ed arte­fact, so when in doubt stay one step coars­er out­door and one step fin­er indoor. The cab­i­net stress and elec­tri­cal draw of fin­er out­door pitch in 50 °C ambi­ent rarely jus­ti­fy the gain.

Step 4: Cross-Check Against Power and DEWA Load

Finer pitch means more diodes, more dri­vers, more pow­er. A 60 m² P2.5 indoor wall pulls rough­ly 25–35 kW peak; the same wall in P4 pulls 15–22 kW. On any DEWA new-con­nec­tion appli­ca­tion this changes which tar­iff band, which pro­tec­tion rat­ing, and how long the approval will take. Specify pitch with the elec­tri­cal engi­neer in the room, not after the fact.

Step 5: Validate With a Physical Sample Under UAE Light

Every seri­ous FlexLedLight bid in the UAE includes a sam­ple cab­i­net shipped to the site for a day­light + dusk + night A/B. Showroom impres­sions from Düsseldorf or Shenzhen do not pre­dict how a pitch per­forms through tint­ed Burj Plaza glass at 14:00 in June. A 0.5 m² sam­ple, two pitch­es side-by-side, removes any doubt for a frac­tion of the project budget.

Pitch Recommendations for UAE Project Types

The short­list below is what we quote first when a client describes the project in one sentence.

• Outdoor bill­board, dri­ve-by, 10–25 m audi­ence: P8 out­door, 8,500 nits, IP66 front.
• Outdoor façade, pedes­tri­an, 5–8 m audi­ence (Dubai Marina, City Walk): P5 or P6 out­door, 7,500 nits.
• Retail store­front, 2–4 m audi­ence inside mall (Dubai Mall, MoE, Yas Mall): P2.5 indoor, 1,200 nits.
• Transparent store­front win­dow, 3–6 m audi­ence: P3.91 trans­par­ent, 5,500 nits.
• Corporate lob­by, 6–10 m audi­ence (DIFC, ADGM, Masdar): P3 indoor, 1,000 nits.
• Trading floor or con­trol room, 2–4 m audi­ence: P1.5 or P1.8 indoor, 600 nits.
• On-cam­era broad­cast wall (GITEX, ADIPEC, F1, Dubai Airshow): P2.6 fine pitch, 1,500 nits, 3,840 Hz.

The cost spread between these spec­i­fi­ca­tions is large: a P8 out­door square metre lands at rough­ly AED 7,500–11,000 sup­plied, a P2.5 indoor square metre at AED 18,000–28,000, and a P1.5 fine-pitch square metre at AED 48,000–72,000. Pitch choice can move a Dubai project bud­get by a fac­tor of five with­out chang­ing sur­face area.

Should You Pick a 3 mm or 4 mm Indoor Pitch?

This is the most com­mon indoor pitch dilem­ma in the UAE. P3 and P3.91 look almost iden­ti­cal past 4 m of view­ing dis­tance. The deci­sion points are usually:

• Content type: small typog­ra­phy, fine prod­uct pho­tog­ra­phy or finan­cial dash­boards favour P3. Brand video, motion graph­ics, ambi­ent art favour P3.91.
• Budget delta: P3 is rough­ly 15–25% more expen­sive per square metre than P3.91.
• Cabinet avail­abil­i­ty: P3.91 has wider sup­pli­er cov­er­age in the UAE, short­er lead times and eas­i­er spare-mod­ule sourcing.
• Future-proof­ing: for a five- to sev­en-year install, P3 ages bet­ter against ris­ing con­tent res­o­lu­tion norms.

When in doubt and the screen sits above 2.5 m of eye lev­el — for exam­ple most mall store­fronts and lob­by walls — P3.91 is the cor­rect answer. Below 2 m eye lev­el and with small typog­ra­phy, P3 earns the cost.

What Pitch for a Showroom, Pop-Up or Boutique in Dubai?

UAE retail clients ask this ques­tion more than any oth­er. The hon­est answer:

• Showroom (8–15 m view­ing depth): P3.91 or P4 indoor. A car show­room on Sheikh Zayed Road or a yacht show­room at Dubai Harbour does not need P2.5 — the audi­ence nev­er gets with­in 3 m of the wall.
• Pop-up acti­va­tion (GITEX, Dubai Shopping Festival, Eid pop-up): P2.6 fine pitch if it will be filmed, P3.91 if not. Most acti­va­tions are filmed.
• Boutique store­front (Dubai Mall, MoE, City Walk): P2.5 indoor for pre­mi­um brands. P3 if the brand brief is motion-led rather than typography-led.

Working With FlexLedLight on a UAE Pixel Pitch Specification

Choosing pitch is the sin­gle high­est-lever­age deci­sion in a UAE LED project. Get it right and the screen car­ries con­tent clean­ly for ten years. Get it wrong and you either over­spend by hun­dreds of thou­sands of AED or you replace the wall in three years.

FlexLedLight runs every UAE project through the same five-step spec­i­fi­ca­tion process before issu­ing a quotation:

1. On-site view­ing dis­tance audit — mea­sured, not esti­mat­ed. 2. Content type and on-cam­era review — broad­cast, retail, cor­po­rate, con­trol. 3. UAE bright­ness and pitch cor­rec­tion — out­door sun load, indoor ambi­ent, mall glass. 4. Power, DEWA / ADDC load align­ment — pitch dri­ven by the avail­able con­nec­tion. 5. Physical sam­ple A/B on site — two pitch­es under real UAE light before order.

Whether the project is a P8 high­way bill­board along E11, a P2.5 retail wall inside Dubai Mall, a P3.91 trans­par­ent façade in DIFC, or a P2.6 broad­cast back­drop at GITEX, we deliv­er hard­ware pre-cer­ti­fied for UAE con­di­tions with a main­te­nance plan cal­i­brat­ed for the climate.
