Outdoor LED Screen Installation in the UAE: Heat, Sand and DEWA Compliance — The Complete 2026 Guide

Installing an out­door LED screen in the UAE means design­ing for direct sun above 50 °C, fine air­borne sand, sud­den coastal humid­i­ty in Dubai and Abu Dhabi, and the spe­cif­ic approval work­flow run by DEWA, Dubai Municipality and ECAS. None of those con­straints exist with the same inten­si­ty in Europe or North America, which is why a screen spec­i­fied for a Paris façade rarely sur­vives a sin­gle sum­mer on Sheikh Zayed Road with­out over­heat­ing or chro­mat­ic drift.

This guide walks through what actu­al­ly mat­ters when you com­mis­sion an out­door LED dis­play in the Emirates: bright­ness tar­gets, IP and IK rat­ings, elec­tri­cal load on the DEWA or ADDC net­work, struc­tur­al anchor­ing under shamal winds, con­tent rules from Dubai Municipality, and the main­te­nance rou­tines that keep a video wall bright for ten years instead of three.

Outdoor LED Screen Specs That Survive the UAE Climate

A stan­dard European out­door LED pan­el rat­ed 5,000 nits will vis­i­bly wash out at noon in Dubai between May and September. The local bench­mark is high­er across every axis — bright­ness, ingress pro­tec­tion, oper­at­ing tem­per­a­ture and refresh rate — because the fail­ure modes are different.

Brightness, Pitch and Resolution for UAE Sunlight

Direct solar irra­di­ance in the Gulf reach­es 1,000–1,100 W/m² in sum­mer, rough­ly 30% above peak European lev­els. To stay read­able through mid­day glare and not look “mud­dy” behind tint­ed mall glass, you need real mea­sured bright­ness, not cat­a­log values.

• Reference bright­ness: plan 7,500 nits as the min­i­mum for any UAE-fac­ing out­door LED screen. For south- and west-fac­ing façades along Sheikh Zayed Road, Corniche Road or Yas Marina, push to 8,500–10,000 nits.
• Pixel pitch: an out­door P6–P8 works from 6 m view­ing dis­tance; P4 is the sweet spot for retail façades in Dubai Mall, City Walk and Mall of the Emirates where pedes­tri­ans get with­in 4 m. For dri­ve-by dis­plays on E11 or E311, P10–P16 is enough and cuts cost per square metre by 30–40%.
• Refresh rate: stay at or above 3,840 Hz, manda­to­ry for any screen that will appear on cam­era (TV broad­casts, F1 Abu Dhabi back­drops, GITEX booths, social-media reels). Anything below pro­duces vis­i­ble scan lines on phone cameras.
• Viewing cone: 160° hor­i­zon­tal open­ing is required for high-traf­fic cross­ings like Burj Plaza or ADGM Square where view­ers approach from mul­ti­ple angles.

A 1,000 nit short­fall is nev­er com­pen­sat­ed by a tighter pitch. Under-spec bright­ness is the sin­gle most com­mon rea­son an out­door LED dis­play gets called “bro­ken” with­in eigh­teen months in the UAE.

IP Rating, Heat and Sand: The Real Targets

European stan­dards stop at IP65. The UAE demands more in practice:

• IP65 front, IP54 rear is the absolute min­i­mum, but IP66 front + IP65 rear is what you should spec­i­fy for any instal­la­tion east of the Hajar moun­tains or with­in 10 km of the coast. Sand par­ti­cles in the Empty Quarter rou­tine­ly mea­sure below 50 µm and slip through IP54 vents with­in one shamal season.
• Operating tem­per­a­ture range: spec­i­fy −10 °C to +60 °C rather than the stan­dard −20/+55 °C. Daytime cab­i­net tem­per­a­tures on a west-fac­ing Dubai façade hit 65 °C in August, and the dif­fer­ence between a 55 °C and 60 °C rat­ed pow­er sup­ply is rough­ly five years of MTBF.
• Humidity tol­er­ance: coastal Abu Dhabi, Sharjah and RAK sites need 95% non-con­dens­ing rat­ed elec­tron­ics. Inland desert sites (Al Ain, Liwa) are dry but see con­den­sa­tion overnight in win­ter — same spec applies.
• Anti-cor­ro­sion coat­ing: pow­der-coat­ed alu­mini­um cab­i­nets with marine-grade hard­ware. Stainless 316, not 304, for any fix­ing with­in 5 km of the sea.

The cab­i­net must also han­dle active cool­ing — pas­sive heat-sinks rat­ed for Northern Europe are not enough. Look for screens with redun­dant fans, smart air­flow man­age­ment and auto­mat­ic lumi­nance dim­ming when inter­nal tem­per­a­ture cross­es a thresh­old (typ­i­cal­ly 55 °C). Without it, the dri­ver ICs throt­tle, colours shift green, and with­in two sum­mers the LED diodes lose 20% of their rat­ed lifetime.

DEWA, ADDC and Electrical Load Planning

Every out­door LED screen in the UAE con­nects to one of the region­al dis­tri­b­u­tion author­i­ties — DEWA in Dubai, ADDC/AADC in Abu Dhabi, SEWA in Sharjah, FEWA in the Northern Emirates. Each has its own con­nec­tion process and approved-con­trac­tor list, and skip­ping the ear­ly con­ver­sa­tion costs weeks.

Power Consumption and DEWA Connection

A pro­fes­sion­al out­door LED screen draws between 400 and 800 W/m² at peak, depend­ing on pitch and bright­ness. A 10 m × 6 m (60 m²) out­door video wall at 8,000 nits will pull around 35–45 kW peak and aver­age 18–22 kW over a typ­i­cal 16-hour oper­at­ing day with mixed content.

That load lev­el usu­al­ly triggers:

• A DEWA new con­nec­tion appli­ca­tion rather than tap­ping the build­ing’s exist­ing sup­ply, espe­cial­ly for screens above 25 kW peak.
• A ded­i­cat­ed three-phase 400 V cir­cuit with its own pro­tec­tion pan­el, ide­al­ly sep­a­rate from ten­ant electrics.
• An Energy Conservation Plan if the instal­la­tion falls under the Dubai Supreme Council of Energy demand-side frame­work — typ­i­cal­ly required above 50 kW total.

Plan 6–10 weeks for DEWA approval of a new out­door screen con­nec­tion. ADDC tends to move faster on com­mer­cial sites but slow­er on res­i­den­tial-zoned façades.

Reducing Operating Cost in a 30 fils/kWh Market

DEWA com­mer­cial tar­iffs in 2026 sit at rough­ly 38 fils/kWh above the 10,000 kWh band. For a 60 m² out­door screen run­ning 16 h/day, that’s an annu­al elec­tric­i­ty bill of AED 35,000–48,000 before cool­ing impact on the sur­round­ing HVAC.

Three levers cut that bill significantly:

• Ambient light sen­sor: manda­to­ry in our installs. Reduces aver­age bright­ness from 100% to rough­ly 55% over a full day, sav­ing 30–40% on con­sump­tion with no per­ceived visu­al drop.
• Smart con­tent rules: sched­ule high-lumi­nance con­tent dur­ing peak retail hours (10:00–14:00, 17:00–22:00) and dim to 30% dur­ing low-traf­fic windows.
• Mandatory night-time dim or shut­down: Dubai Municipality already restricts com­mer­cial bill­board oper­a­tion between 02:00 and 06:00 in most zones — turn the screen off, don’t just dim. Diode life­time is rat­ed in oper­at­ing hours; sav­ing 1,460 hours/year extends usable life by rough­ly two years.

Structural Anchoring and Wind Loading

UAE build­ing codes derive from the UAE Fire & Life Safety Code and emi­rate-spe­cif­ic struc­tur­al codes (Dubai Building Code 2021, Abu Dhabi International Building Code). For an out­door LED screen, two wind sce­nar­ios dri­ve the struc­tur­al design:

• Shamal events: sus­tained north­west­er­ly winds of 60–80 km/h with gusts above 100 km/h, com­mon March–August. The screen and its sup­port­ing struc­ture must hold steady — vis­i­ble flex cre­ates moiré on cam­era and stress­es cab­i­net seams.
• Cyclonic events: rare but real. The Shaheen (2021) and Biparjoy (2023) events deliv­ered gusts above 130 km/h on the east­ern coast. Specify wind load­ing for 150 km/h on any instal­la­tion in Fujairah, Khor Fakkan, RAK or any seafront site.

A struc­tur­al engi­neer reg­is­tered with the local munic­i­pal­i­ty must sign off the sup­port­ing frame, the anchor points and the dead/live load cal­cu­la­tion. Magnetic front-access cab­i­nets, while not required, divide ser­vice inter­ven­tion time by three — impor­tant when you need a cher­ry pick­er per­mit each time you replace a module.

ECAS Certification and Content Approval

Two reg­u­la­to­ry tracks run in parallel.

Product Certification (ECAS / G‑Mark)

Every elec­tri­cal prod­uct sold or installed in the UAE must car­ry ECAS (Emirates Conformity Assessment Scheme) reg­is­tra­tion or G‑Mark (the GCC equiv­a­lent). For LED screens this covers:

• Electrical safe­ty per IEC 61347 and IEC 60598
• EMC per CISPR 32 / EN 55032
• LED pho­to­bi­o­log­i­cal safe­ty per IEC 62471

If your import­ed screen lacks ECAS reg­is­tra­tion, cus­toms will hold the ship­ment at Jebel Ali. Budget 4–8 weeks for reg­is­tra­tion if the man­u­fac­tur­er has­n’t filed before. FlexLedLight only ships UAE projects with pre-cer­ti­fied hard­ware to avoid this trap.

Content Approval

Outdoor dig­i­tal sig­nage con­tent in the UAE is reg­u­lat­ed by the National Media Council at fed­er­al lev­el and emi­rate-spe­cif­ic author­i­ties local­ly. Restrictions to plan for:

• Religious sen­si­tiv­i­ty: no depic­tion of alco­hol, pork, gam­bling, or con­tent that could offend Islamic val­ues. Stricter rules apply dur­ing Ramadan (no eating/drinking visu­als dur­ing daylight).
• Brightness throt­tling: manda­to­ry dim­ming near mosques dur­ing prayer times in sev­er­al Sharjah and RAK zones.
• Animation speed: Dubai Municipality lim­its image change fre­quen­cy near major roads to one tran­si­tion every 8 sec­onds min­i­mum, to avoid dri­ver dis­trac­tion. Faster cycles are allowed inside mall atria and pedes­tri­an zones.
• Pre-approval: adver­tis­ing con­tent on out­door LED screens fac­ing pub­lic roads requires advance sub­mis­sion to the local munic­i­pal­i­ty media office (Dubai Municipality, ADM, Sharjah Commerce & Tourism Development Authority).

Maintenance Routines for Desert Operation

A well-installed out­door LED screen in the UAE should deliv­er 80,000–100,000 hours of usable life — about 14 years at 16 h/day — pro­vid­ed the main­te­nance rou­tine accounts for the climate.

• Quarterly com­pressed-air clean­ing of the cab­i­net rear vents — sand accu­mu­lates faster than dust in any oth­er mar­ket we serve.
• Bi-annu­al diode inspec­tion for any col­umn show­ing greater than 5% bright­ness drift ver­sus the cal­i­brat­ed base­line. Calibration files should be re-run year­ly using an on-site col­orime­ter, twice year­ly in high-humid­i­ty coastal sites.
• Annual struc­tur­al inspec­tion of anchors and brack­ets, manda­to­ry after any shamal event above 90 km/h sustained.
• Power sup­ply replace­ment at year 7 as pre­ven­tive main­te­nance on screens run­ning 16+ h/day. PSU fail­ure in sum­mer with 60 °C ambi­ent is the sin­gle largest cause of unplanned down­time in the region.

A reac­tive-only main­te­nance con­tract typ­i­cal­ly costs 4–6% of capex per year. A pre­ven­tive con­tract is 6–8% but extends usable life by rough­ly 30% — a clear win on any instal­la­tion above AED 200,000.

Working With FlexLedLight on a UAE Project

FlexLedLight engi­neers out­door LED instal­la­tions across France, the GCC and beyond. Every UAE project starts with three site mea­sure­ments before quoting:

1. Solar expo­sure scan — ori­en­ta­tion, dai­ly inso­la­tion, sur­round­ing glass reflec­tions. 2. Electrical capac­i­ty check — coor­di­na­tion with the DEWA, ADDC, SEWA or FEWA con­nec­tion or sub-meter­ing plan. 3. Structural fea­si­bil­i­ty — anchor study against local wind load­ing and local code.

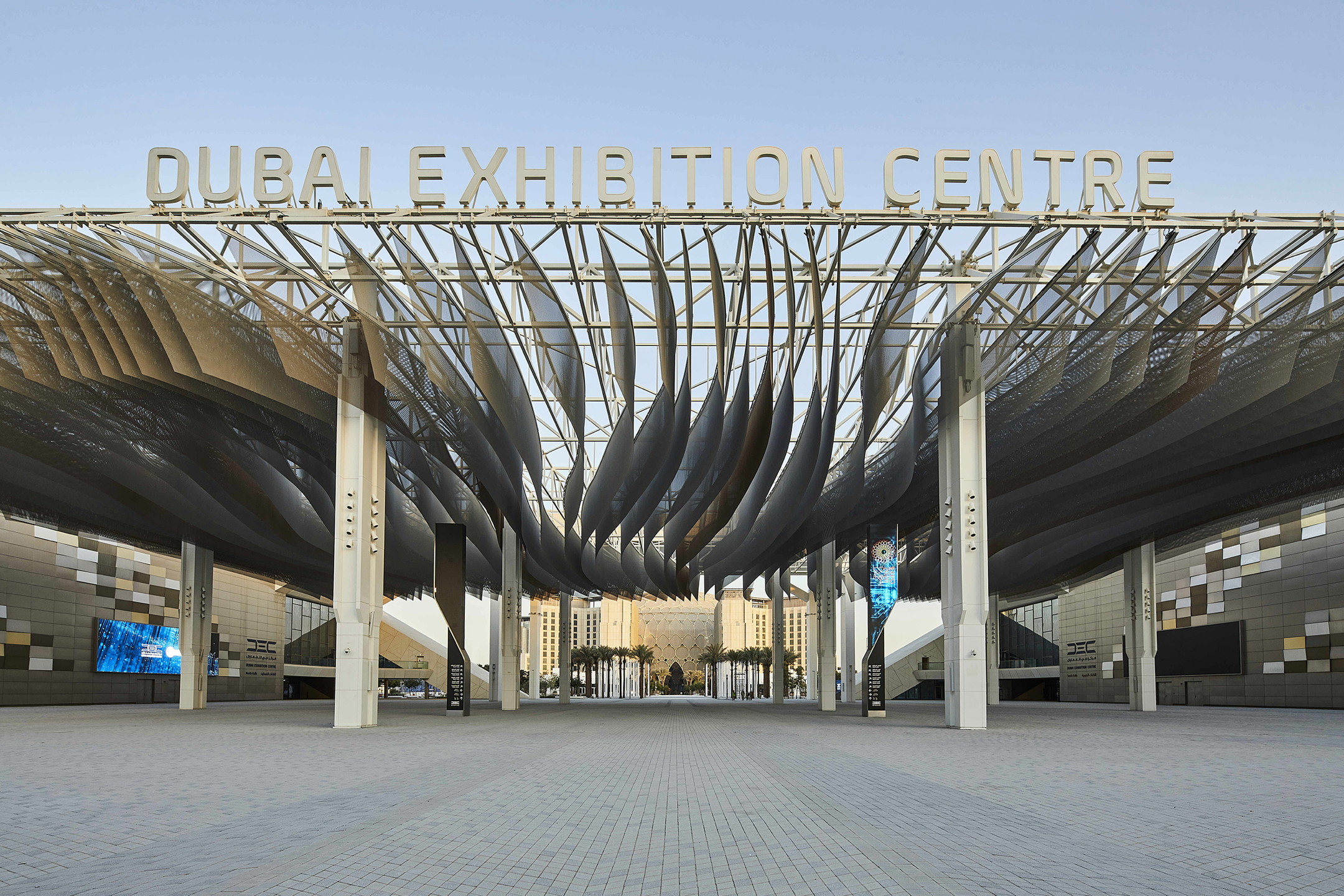

Whether your project is a trans­par­ent LED façade in DIFC, a retail video wall in Dubai Mall, an out­door bill­board along E11 or an event screen for an ExpoCity acti­va­tion, we deliv­er hard­ware pre-cer­ti­fied for UAE con­di­tions, with a main­te­nance plan cal­i­brat­ed for the climate.

Contact us for a UAE out­door LED screen quo­ta­tion or browse our LED screen cat­a­logue to start scop­ing your project.

---
